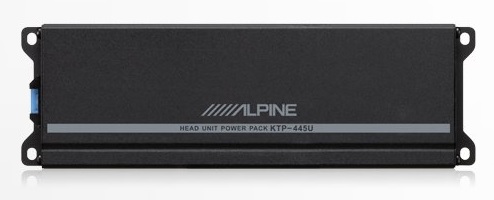

Alpine KTP-­445U – Universal Class D 4-Channel Head Unit Power Pack

$249.95 $149.95

SOLD IN STORES ONLY

The Alpine KTP-445U adds more dynamic response and higher output to a system. On top of this, it is easy to install. The universal power pack amplifies factory…. (see full description)

Extended Warranty

SKU: KTP-445U Categories: ,

Description

The Alpine KTP-445U adds more dynamic response and higher output to a system. On top of this, it is easy to install. The universal power pack amplifies factory or aftermarket installed head unit power output. It increases the power by 150% of the unit’s original power.

KTP-445U’s compact size allows it to fit in places where other amplifiers will not fit. In most vehicle dashes, it fits right behind the main unit. Auto-sensing-speaker and RCA connectors come with the power pack. These connectors are flexible in nature, which also helps fit the power pack into a limited space.

Highly Configurable

Another benefit is that this power pack is configurable to specific needs. The pack’s bottom panel contains input options that accommodate RCA inputs of 0.2 V to 4V and speaker levels of 0.5V to 10V. One can select either 2-channel or 4-channel adjustments to control the source inputs. This removes having to use Y-adapters.

High-Pass switches for rear and follow allow the operator to filter frequency to a wide assortment of speakers. This enables for high-pass crossover with choices of 60HZ, 80HZ and 120HZ. All levels are at 12 dB/octave.

Low Noise Floor

Alpine KTP-445U additionally provides an extremely low noise floor thanks to the well-designed platform from Alpine. This guarantees the listener a crisp signal minus unnecessary interference. The pack’s 1W signal-to-noise ratio is 82dB or higher. Let us not forget to mention the variable front-and-rear gain controls that a simple to adjust that Alpine added to the end panel. This provides flexibility in the use of numerous system applications.

Distortion decreases in the higher frequencies with this power pack, which produces a clear and clean signal in the frequencies where the ear is at higher risk of noticing such distortion.


$249.95 $149.95Add to cart

Additional information

RMS Power @ 4 ohms

45 watts x 4 channels

RMS Power @ 2 ohms

45 watts x 4 channels

Bridged RMS Power

90 watts x 2 channels

Amplifier Class

D

Number of Channels

4

Total RMS Power Output

180 watts

Maximum Input Gauge Size

Wire Harness

Minimum Impedance Unbridged

2 ohms

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

1%

Built-in Crossover

None

Signal-to-Noise Ratio

81 dB

Bass/Gain Remote

No

Fan Cooled

No

Fuse Rating

15A x 1

CEA-2006 Compliant

Yes

Speaker Level Inputs

Yes

Preamp Outputs

No
